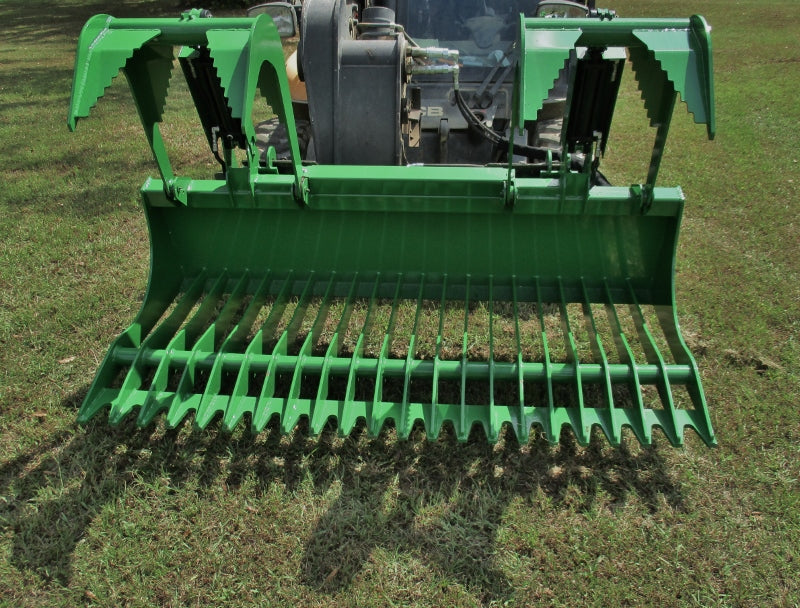

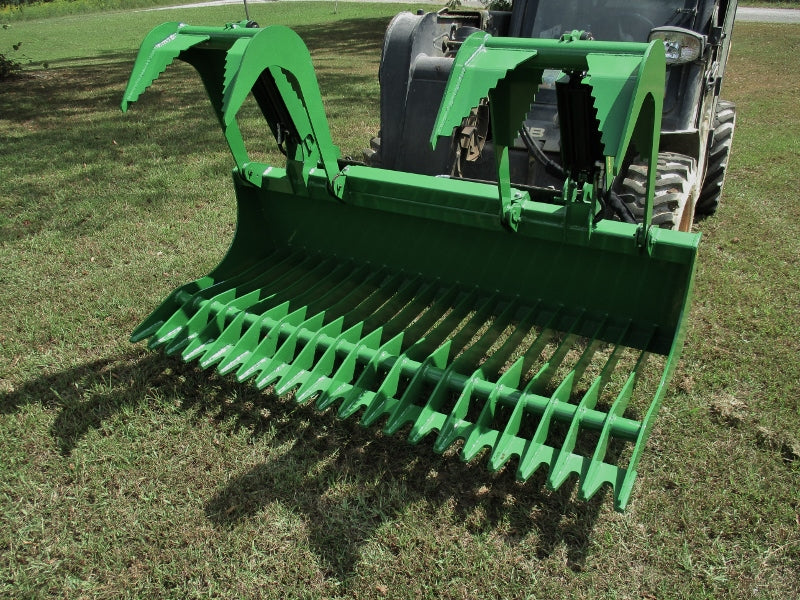

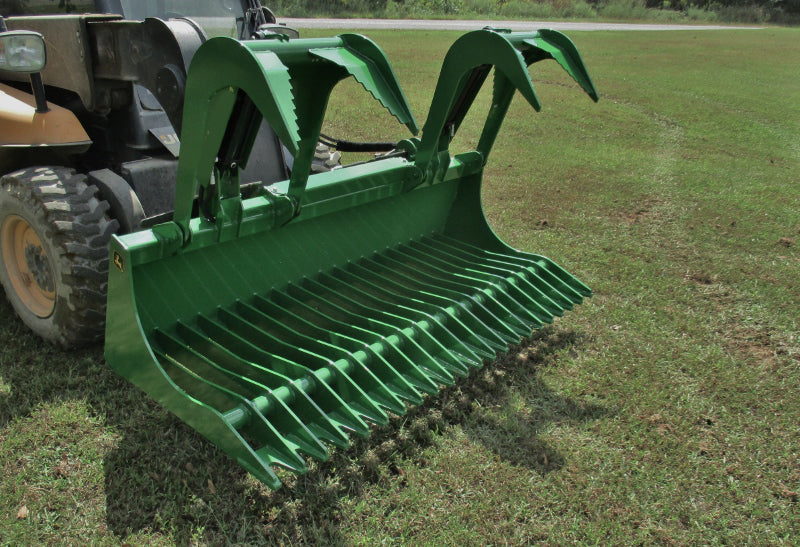

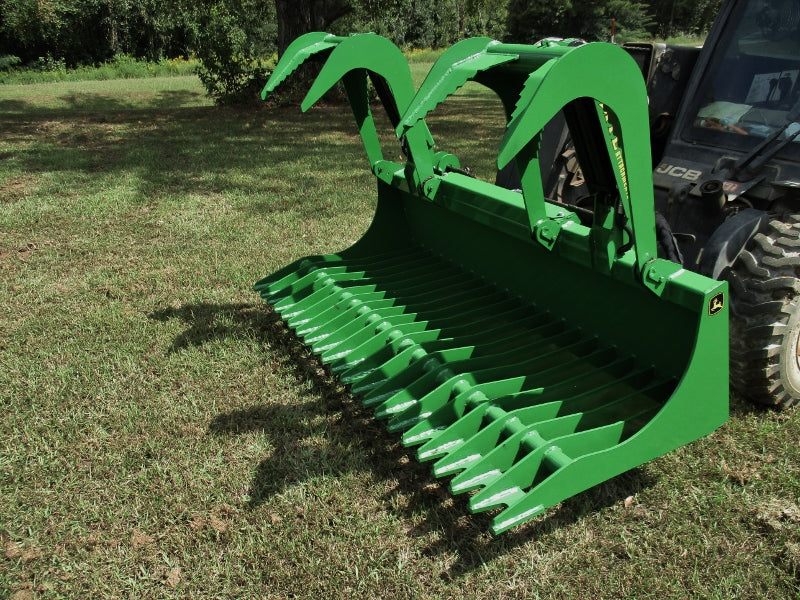

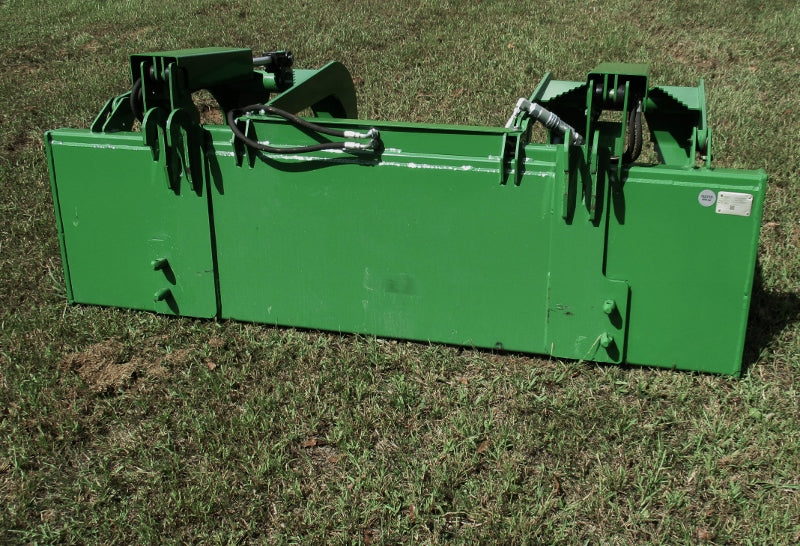

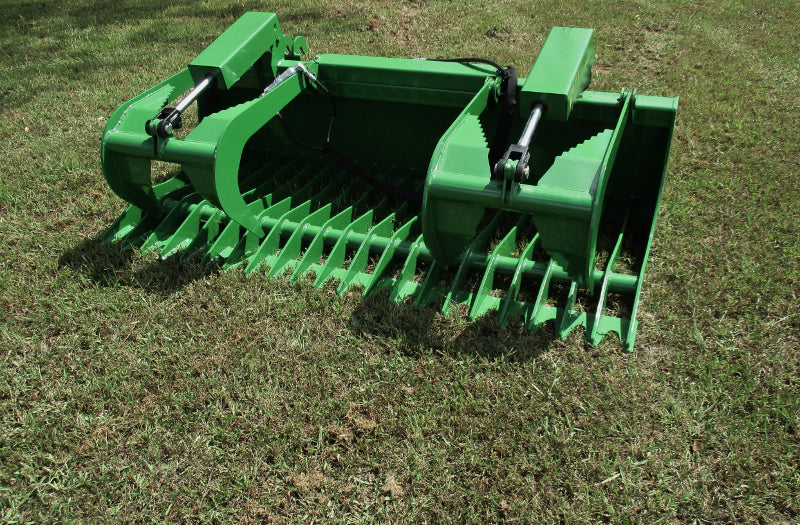

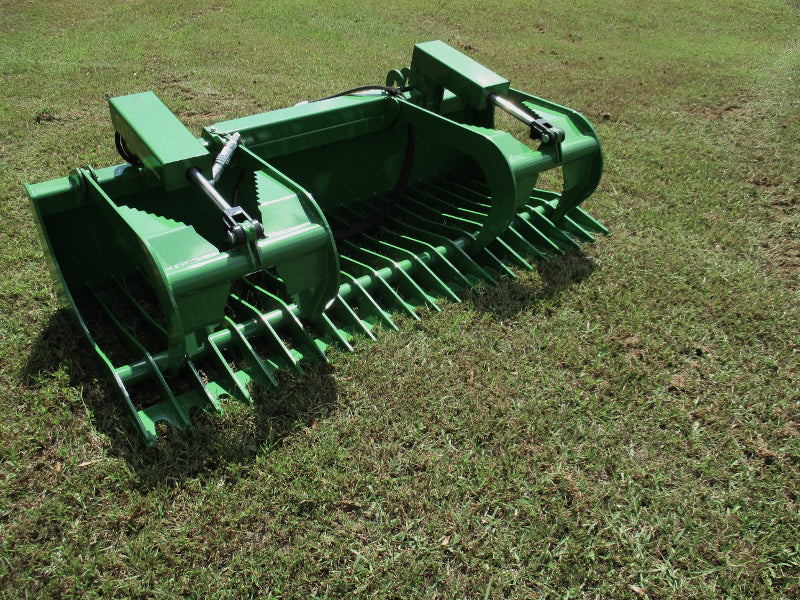

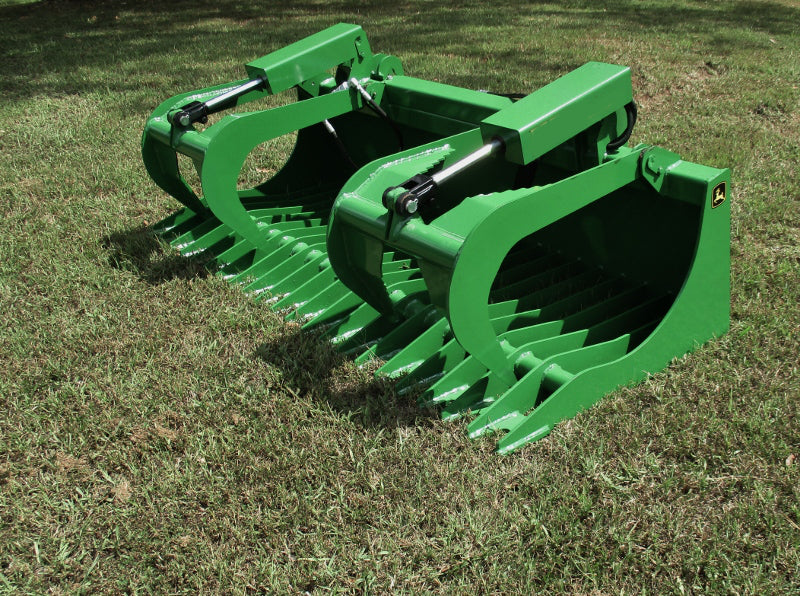

2024 New BAX John Deere Rock/Root/Demolition Grapple

New For 2024 Models:

~Wider Opening
~Grease fittings on moveable parts
~Stronger base
~Fully Functional center step
~Solid Upper Tongs to protect underside of cylinders
~Largest Pin Diameter for cylinders on Market 1.25″ pins
~Deeper Capacity
~New Welded US Stronger Cylinders for more pressure
~Stronger Uprights for Cylinder Arm support
~Completely protected hose routing
~New Upper Gussets on quick attach for added strength
~New Stronger Cylinder Covers for 2023
~New sizes available – Now available in 60”-72”
~Comes in – NEW 3″ spacing – our strongest built in the 700 lb category.

Features:

• 3/8″ Solid steel A50 sides-middles & tops
• High Strength A50 Steel
• Integrated Cutting edge w/ A36 (A50) formed steel teeth
• 3045 PSI lines
• NEW Stronger cylinder Covers Included
• 100% Powder Coated
• Nylon hose protectors included !!
• ½” AG / Pioneer Tractor couplers included (Fits 99% of most Tractor Models)
• Hydraulic Hoses included
• 36″ Tip to Tine opening
• Overall depth Approx 36″ / Inside grapple depth of approx 34” and 3” or 5″ Tine spacing for holding smaller debris.
• NEW 2020 1.25″ Pin Welded Xtreme series Twin Hydraulic Cylinders 2″ x 10″ Stroke
• Completely Protected shield for hydraulic lines
• John Deere loader or Global Euro Style attachment plate – see pics for mount styles
• We have used them on 1,000’s of tractors with no problem up to 65hp rated
